As a professional in shipbuilding, a shipowner, or a DIY enthusiast for fiberglass boats, you’ve surely faced this dilemma: with a bewildering array of fiberglass chopped strand mats on the market and widely varying prices, how do you choose? Opt for the expensive one and you risk overspending; choose the cheap alternative and you fear substandard quality, which can lead to later issues such as hull delamination, water seepage, and insufficient strength. These problems not only incur high rework costs but also pose hidden dangers to navigation safety.
In truth, choosing chopped strand mat for shipbuilding is never as simple as “only looking at the price”. As the core foundational material for fiberglass hull molding, it acts like the “reinforced steel skeleton” of a vessel, directly determining the hull’s strength, seawater corrosion resistance, aging resistance, and even the service life of the ship. With years of deep roots in the fiberglass industry, Yuniu works with shipbuilding clients worldwide every day and fully understands the pain points and confusion you face when purchasing.
In this guide, we take your perspective entirely, abandon obscure industry jargon, and thoroughly explain the selection logic, core parameter interpretation, selection solutions for different vessel types, pitfalls to avoid, and how to choose a reliable manufacturer for shipbuilding-grade chopped strand mat. Our goal is to help you use and select the right materials, spend the least money to build the most durable boats, and ensure every vessel can withstand wind and waves.
Many clients only understand the “weight” parameter when looking at a chopped strand mat specification sheet, have little knowledge of other indicators, and only find the product unsuitable after blind ordering. In fact, mastering the following 3 core parameters will help you avoid 80% of selection mistakes—this is also the core basis for Yuniu’s selection guidance to clients over the years.

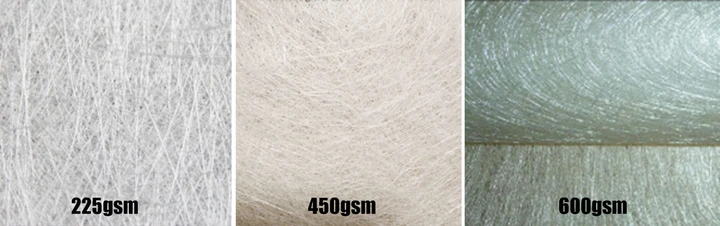

Weight is the most critical parameter of chopped strand mat, directly determining the product’s strength, resin consumption, construction difficulty, and procurement cost. Based on practical shipbuilding needs, Yuniu offers 3 mainstream weights, each with a clear application scenario to eliminate unnecessary hesitation.
225gsm Lightweight Chopped Strand Mat: A low-weight, high-permeability product with thinner, fluffier fibers and extremely fast resin penetration, eliminating bubbles and hollowing. It is ideal for the surface layer of the hull (the first mat under the gel coat layer), lightweight structures of small recreational boats, and fitting complex curved surfaces such as the bow and sides. Advantages: easy construction and good conformability. Disadvantage: limited single-sheet strength, requiring multiple layers to meet design requirements.
450gsm Medium-High Weight Chopped Strand Mat: Focuses on high strength and rigidity, with higher fiber density and a more stable molded structure. Suitable for the main hull structure, bottom, keel, and other stress-critical parts of large vessels (workboats, fishing boats, transport ships), it greatly improves the hull’s impact resistance and structural strength, reduces laying layers, enhances construction efficiency, and indirectly lowers labor costs.
600gsm High-Weight Chopped Strand Mat: The ultimate choice for maximum strength, designed for core stress structures of ultra-large vessels, high-speed boats, special operation vessels, or parts requiring extreme fatigue and impact resistance. It achieves design strength with fewer layers, saving construction time and resin consumption for better long-term cost-effectiveness. Yuniu provides bulk customized supply for large shipyards.
Width refers to the width of the chopped strand mat roll. Though a simple number, it directly impacts your construction efficiency and material cost—many clients overlook this point, leading to severe material waste later. Yuniu offers 3 mainstream specifications (1040mm, 1250mm, 1270mm) for different shipbuilding scenarios and supports customized widths to maximize cost reduction and efficiency gains for you.
1040mm Narrow Width Mat: Suitable for small vessels, local repairs, and complex curved surface construction. It is flexible for cutting with minimal corner waste, perfect for DIY enthusiasts and small shipyards. For example, the bow and sides of small fishing boats have large curvatures, and narrow width mats fit curved surfaces better to avoid wrinkles and hollowing.
1250mm/1270mm Wide Width Mat: For mass production of large vessels, wide rolls cover a larger area at once and reduce splicing seams—weak points of the hull. Reducing splicing improves the hull’s structural integrity and impermeability, greatly cuts cutting time, and lowers labor costs, making it the mainstream choice for large shipyards.
Purchase Suggestion: Plan the width in advance according to the hull size. For a 2.5-meter-wide hull, 1250mm width is ideal (two sheets splice perfectly for zero waste); 1040mm width will generate excess cutting parts and high material loss.

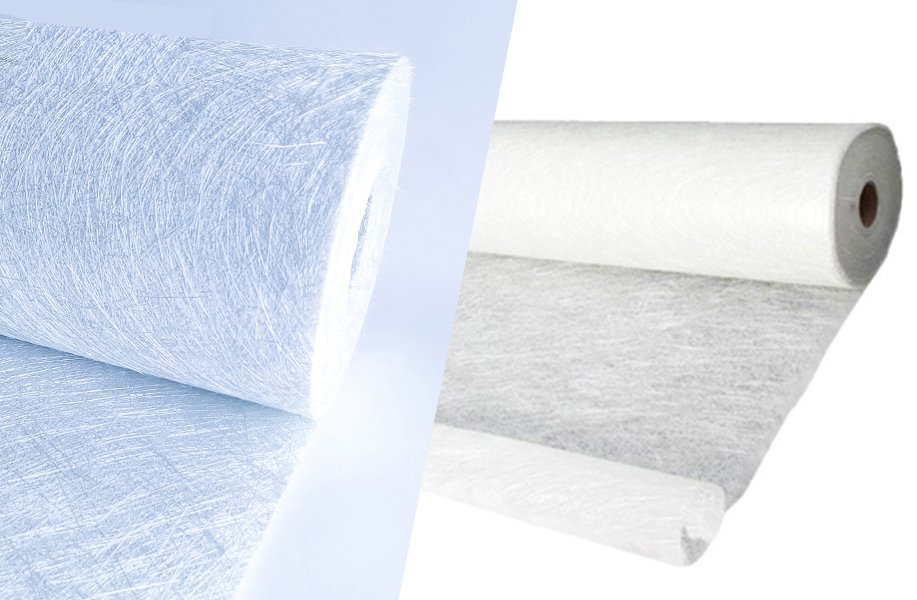

The binder is the “soul” of chopped strand mat. It bonds chopped glass fibers into a mat and dissolves quickly during resin infiltration to ensure full integration of fibers and resin, directly affecting the hull’s bonding strength. Yuniu provides two mainstream binder types: Emulsion and Powder, whose core differences directly determine application scenarios—never mix them up.
Emulsion Chopped Strand Mat: Soft, fluffy, with excellent conformability, stress-free for complex curved surface construction, fast resin infiltration, few bubbles, and high construction efficiency. It is most compatible with unsaturated polyester resin (UP) and vinyl ester resin (VE)—the mainstream resins in shipbuilding. Thus, emulsion mat suits 90% of conventional shipbuilding scenarios (recreational yachts, fishing boats, sightseeing boats), making it one of Yuniu’s most popular products.
Powder Chopped Strand Mat: Stiffer, with good flatness, suitable for flat and large-area construction. It has slightly lower conformability than emulsion mat but is storage-resistant, moisture-proof, and has a longer shelf life with strong versatility. Compatible with epoxy resin (EP) and polyester resin, it suits epoxy-system vessels, large workboats, special vessels, or construction in long-term storage and humid environments.
Critical Reminder: Never use emulsion mat for epoxy-system shipbuilding! Emulsion binder reacts with epoxy resin, causing bonding failure, fiber-resin delamination, and complete loss of hull strength—this is the most common pitfall for clients. If unsure about your resin system, contact Yuniu’s technical team for precise binder matching.
There is no “best” chopped strand mat, only the most suitable one. Many clients struggle because they don’t know which specification fits their vessel type. Based on years of service experience, Yuniu has compiled a practical selection plan for different vessel types according to their characteristics, stress needs, and construction scenarios—use it directly after reading, no more repeated consultations or hesitation.
Core Needs: Lightweight, smooth surface, good conformability, cost-effective, no extreme strength required but daily navigation safety guaranteed.
Selection Plan: Surface layer uses 225gsm emulsion mat (1040mm width) for flawless surfaces and fitting complex bow/sides curves; structural layer uses 300gsm emulsion mat (1250mm width) to balance strength and lightweight for higher speed; key stress parts (hull bottom, keel) are locally reinforced with 450gsm emulsion mat for better impact resistance.
Yuniu Recommendation: The combination of 300gsm + 225gsm emulsion mat is the golden match for small vessels, with easy construction and controllable cost, fully meeting the strength needs of recreational boats. It is the top choice for most DIY enthusiasts and small shipyards.
Core Needs: High strength, fatigue resistance, seawater corrosion resistance, high construction efficiency, stable hull structure for long-term complex navigation.
Selection Plan: Surface layer uses 300gsm emulsion mat (1250mm width) for good surface quality and fewer defects; structural layer uses 450gsm emulsion mat (1270mm width) to reduce splicing seams and improve structural integrity; hull bottom, deck, bulkhead, etc., mainly use 450gsm emulsion mat, locally reinforced with 600gsm emulsion mat to resist long-term navigation fatigue stress and enhance durability.
Yuniu Recommendation: 450gsm emulsion wide-width mat is the main material for medium vessels, balancing strength, efficiency, and cost to fit most medium vessel production. Yuniu provides bulk supply with stable quality.
Core Needs: Ultimate strength, high rigidity, impact resistance, compliance with classification society standards, capable of harsh navigation and heavy loads, and robust hull structure.
Selection Plan: Surface layer uses 300gsm emulsion/powder mat (chosen by resin system); main hull structure uses 600gsm emulsion/powder mat (1270mm width) to achieve design strength with minimal layers and boost efficiency; core stress areas (keel, hull bottom, compartments) use multi-layer 600gsm high-weight mat with fiberglass cloth to build super-strong structures meeting classification society certification requirements.
Yuniu Recommendation: 600gsm high-weight mat is certified by international classification societies, made of high-purity E-glass with high strength and corrosion resistance. It greatly improves construction efficiency and reduces labor/material costs, making it the optimal choice for large vessels.
Through client communication, we have seen countless rework accidents caused by wrong or inferior materials—wasting time and cost while compromising vessel safety. We summarize the 5 most common pitfalls to help you avoid detours.
Many low-price mats labeled 300gsm only weigh 260–280gsm. Though you save money upfront, insufficient strength leads to high risks of later hull cracking and water seepage, with rework costs far exceeding initial savings.
Avoidance: Choose a manufacturer (e.g., Yuniu) with third-party inspection reports for each batch, controlling weight deviation within ±5%, ensuring full weight and strength with no cut corners.
This is the most common and serious mistake: using emulsion mat with epoxy resin causes binder failure to dissolve, fiber-resin delamination, and complete loss of hull strength, wasting all prior construction.
Avoidance: Confirm your resin system first—polyester/vinyl ester resin matches emulsion mat; epoxy resin matches powder mat. Consult Yuniu’s technical team if unsure.
Inferior mats use recycled glass fibers with low strength, high impurities, and poor infiltration, leading to bubbles, delamination, reduced corrosion resistance, and shortened service life.
Avoidance: Choose chopped strand mat made of high-quality E-glass. All Yuniu products use high-purity E-glass, with high strength, corrosion resistance, compliance with international shipbuilding standards, and strict batch testing.
Many small manufacturers only sell products without technical services, leaving clients with no help for construction or selection issues, affecting quality and causing material waste.
Avoidance: Choose a manufacturer with technical support capabilities. Yuniu provides exclusive technical support for every shipbuilding client, following up from selection and construction to after-sales to solve all problems.
As a company focused on R&D, production, and sales of fiberglass products, Yuniu has deep industry experience and serves global shipbuilding clients—from small DIY enthusiasts to large shipyards. Our advantages are why clients choose us and our confidence in solving your practical pain points.
Full Specification Coverage: From 225gsm to 600gsm, 1040mm to 1270mm, full emulsion/powder series. Suitable for small yachts to large special vessels; supports weight/width customization to avoid waste.
Strict Quality Control: All products use high-purity E-glass, with strict batch testing, small weight deviation, uniform fibers, excellent infiltration, compliance with ISO and international standards, and stable quality recognized worldwide.
Client-Oriented Cost Reduction: We optimize selection plans to reduce material waste, improve efficiency, and lower overall costs, helping you get the best products and solutions at the lowest cost.
Professional Technical Support: A dedicated technical team provides one-on-one guidance from selection to after-sales, solving all construction issues for both novices and large shipyards.
Global Supply Chain: Modern production base with sufficient capacity for large orders; global logistics ensures timely delivery worldwide without disrupting production.
Shipbuilding is a conscientious project, where every detail relates to safety and quality. Though seemingly insignificant, fiberglass chopped strand mat is the core of the hull structure. Choosing the right one lets your vessel brave wind and waves with durability; choosing the wrong one hides endless troubles, wasting costs and endangering navigation safety.
As your partner, Yuniu Fiberglass always stands in your shoes, providing professional products and attentive services to help you select and use the right materials, building the strongest defense for every vessel. We do not pursue low-price competition but focus on superior quality and thoughtful service, winning trust and recognition with strength.
If you are struggling with chopped strand mat selection or have customized needs, feel free to contact us anytime. Yuniu Chopped Strand Mat works with global shipbuilders to build safer, more durable vessels and sail further into the blue ocean.
